Fuse status monitor


Description of Service

A simple addition to any
Electronic circuit that allows you to monitor the situation
Molten Fuse

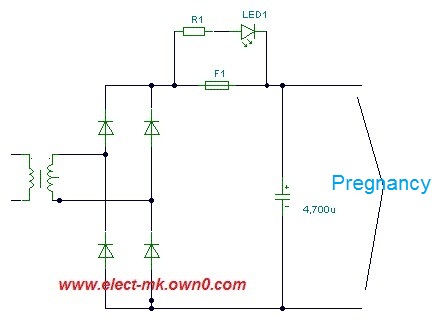

Circuit diagram

Fuse status monitor Fusemo10

Explain
Service

When you add resistance
Respectively with the diode voltage would be
In the event that the fuse sound equal to zero
Because in this case a fuse is a wire connector
However, if damage has occurred or a break in the fuse will lead to
The emergence of voltage slightly less than the effort nutrition
The Department required control fuse
Where


Enasraldairp

Resistance value
One kilo ohm or greater "effort by nutrition"
 Diode
cherry
